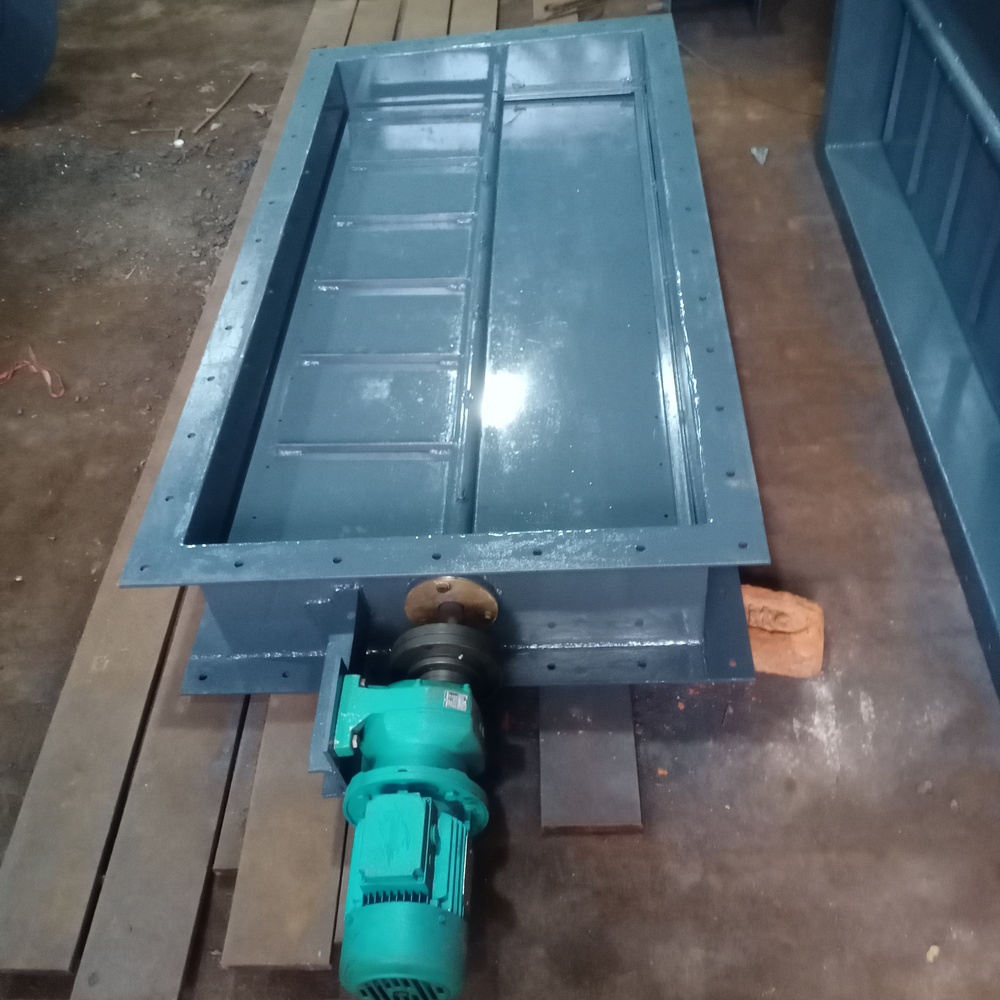

Motorised Butterfly Damper

Name: Motorised Butterfly Damper
Brand: M P ENTERPRISE
Price: 97850 INR
Availability: InStock

Price 97850 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Motorised Butterfly Damper Specification

Shape
Circular

Torque
Depends on valve size and pressure; up to 250 Nm

Phase
Single Phase / Three Phase

Diameter
100 mm to 1200 mm

Product Type
Motorised Butterfly Damper

General Use
Industrial Air Flow Regulation

Material
Mild Steel / Stainless Steel

Type
Wafer / Flanged

Capacity
Up to 1200 mm diameter (customizable)

Weight (kg)
Varies with size (typically 25-80 kg)

Computerized
No

Automatic
Yes (Motor Driven)

Touch Screen
No

Control System
Electric Actuator Controlled

Surface Treatment
Epoxy Powder Coated / Painted

QC System
ISO 9001:2015 Certified

Tolerance
2 mm

Drawing
Available on Request

Voltage
230V / 415V AC, 50Hz

Dimension (L*W*H)
As per size (standard and customized sizes available)

Feature
Leak-proof design, Low maintenance, Quick operation

Color
Grey / Blue

Mounting Orientation
Horizontal / Vertical

Pressure Rating
Up to 2.5 bar

Sealing
Neoprene/Silicon rubber for air tightness

Operating Temperature Range
-10C to +80C

Isolation
Bubble tight shut-off

Flange Standard
IS / ANSI / DIN

Signal Feedback
Position feedback via limit switches

Connection Type
Flanged / Wafer / Lugged

Ambient Humidity
Up to 95% RH (Non-condensing)

Suitability
HVAC, Ventilation, Dust Collection, Industrial Gas Ducting

Actuator Type
On/Off or Modulating Electric Actuator

Noise Level
Below 65 dB(A)

Motorised Butterfly Damper Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

About Motorised Butterfly Damper

Utilise our exclusive Offer and enjoy a Price Cut on the Valiant Motorised Butterfly Damper with Sealing-featuring either Neoprene or Silicon rubber for unparalleled air tightness. This Top-notch solution boasts a brilliant on/off or modulating electric actuator, ensuring bubble-tight isolation and reliable performance up to 2.5 bar. Designed for versatility, it fits horizontal or vertical mounting, suits various flange standards, and operates silently below 65 dB(A). Ideal for HVAC, industrial gas ducting, and dust collection. Available in custom sizes up to 1200 mm; quality assured and low-maintenance.

Features, Applications & Users of the Motorised Butterfly Damper

This machine stands out for its leak-proof, low-maintenance, and quick operation attributes. Highly valued for its bubble-tight shut-off and robust torque handling, it is widely utilised by HVAC specialists, facility engineers, and industrial ventilation professionals. Other applications include dust collection systems and diverse industrial air flow regulation tasks in automated settings, making it essential for modern manufacturing and processing environments where reliability and precise control are paramount.

Certifications, Port & Delivery of the Motorised Butterfly Damper

The Motorised Butterfly Damper is ISO 9001:2015 certified, ensuring top-tier quality and dependability. Handover is conducted post stringent quality checks, with expert packing & dispatch practices in place to preserve product integrity. Typically shipped from major Indian FOB ports, customers benefit from flexible delivery times tailored to project schedules, enabling swift commissioning and operational readiness directly onsite.

FAQ's of Motorised Butterfly Damper:

Q: How is the Motorised Butterfly Damper installed and what orientations are supported?

A: Installation of the Motorised Butterfly Damper is straightforward and supports both horizontal and vertical mounting orientations, making it adaptable to a wide range of ducting configurations.

Q: What are the main features that set this damper apart from others?

A: This damper features a leak-proof design with Neoprene or Silicon sealing for bubble-tight shut-off, a brilliant electric actuator with position feedback, robust torque, and is available in both flanged and wafer types for versatile integration.

Q: When can I expect the damper to be shipped after ordering?

A: Once your order is confirmed, the damper is packed and dispatched promptly, typically shipped from a major Indian port with delivery timelines based on order size and location.

Q: Where is this product most commonly used?

A: The Motorised Butterfly Damper is commonly used in HVAC systems, ventilation setups, dust collection units, and industrial gas ducting, where precise air flow regulation is essential.

Q: What process ensures the product's quality and reliability?

A: Each damper undergoes comprehensive quality checks as part of an ISO 9001:2015 certified QC system, ensuring consistent performance, durability, and customer satisfaction.

Q: How does position feedback via limit switches benefit users?

A: Position feedback via limit switches enables real-time monitoring of damper status, improving system automation, safety, and diagnostic capabilities.
